Fully Automatic Toilet Paper Machine 3800mm Type High Speed Paper Napkin Machine

Brand Name : HUATAO

Model Number : HT-PJT003

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1

Price : 20000

Payment Terms : L/C,T/T,Western Union

Supply Ability : 30 sets per year

Delivery Time : 100 days

Packaging Details : standard export packing

Paper grade : 13-30gsm

Design speed : 250m.min

Working speed : 160-230m/min

Capacity : 11-18Ton/day

Gauge : 4800mm

packaging : standard export package

Contact Now

Fully Automatic Toilet Paper Machine 3800mm Type High Speed Paper Napkin Machine
Key Specifications
Paper grade 13-30gsm
Design speed 250m/min
Working speed 160-230m/min
Capacity 11-18Ton/day
Gauge 4800mm
Product Overview

The 3800mm Type High-speed Tissue Paper Machine is designed for efficient production of toilet paper and napkin base paper with pulp weights of 13-30 g/㎡.

Application

Primarily used for manufacturing toilet paper and paper napkin base paper from wood pulp plate or waste paper raw materials.

Craft Parameters
  • Pulp: Wood pulp plate, waste paper
  • Feeding pulp concentration: 0.3-0.9‰
  • Beating degrees: 30-38°SR
  • Paper sheet dryness: 18-20% from wire case, 36-40% before MG cylinder, 90-94% finish tissue
  • Lateral shrinkage: 8-10%
  • Day running hours: 22 hours/day
  • Papermaking rate: 94%
  • Yield: 95%
  • Touch roll line pressure: 60 KN/m
Supporting Parameters
  • AC voltage: 380V; 50Hz
  • Control voltage: 220/24V
  • Water pressure: 0.3Mpa (Working: 0.2Mpa)
  • Compressed air pressure: 0.8Mpa (Working: 0.5Mpa)
  • Steam pressure: 0.6Mpa (Working: 0.3Mpa)
  • Vacuum suction tank: 20-40Kpa
  • Water requirement: Pure color, remove impurities, PH value 6.8
Technical Specifications
  • Paper weight: 18-30g/m²
  • Net width of paper: 3500mm
  • Designed speed: 250m/min
  • Working speed: 160-230m/min
  • Nominal capacity: 10-15T/D
  • Track gauge: 4500mm
  • Wrinkling rate: 15-30%
  • Drive way: Y-type AC motor drive division, section drive
  • Control way: Frequency conversion
  • Power: MG cylinder motor: 95kw, Roll-cylinder motor: 7.5kw (Total: 102.5Kw)
  • Arrangement: Single-layer, left and right hand arrangement
Machine Model Comparison
Item / PM type 1575 1880 2400 2900 3500 3800
Design Speed (m/min) 250 250 250 250 250 250
Working Speed (m/min) 160-230 160-230 160-230 160-230 160-230 160-230
GSM Range (g/m²) 13-30 13-30 13-30 13-30 13-30 13-30
Capacity 4-6 5-8 7-10 8-12 10-15 11-18
Diameter of Dryer (mm) Φ2500-3000 Φ2500-3000 Φ2500-3000 Φ2500-3000 Φ2500-3000 Φ2500-3000
Motor (kw) 37-45 45-55 55-75 75-90 90-110 90-110
Gauge(mm) 2400 2800 3400 3900 4500 4800

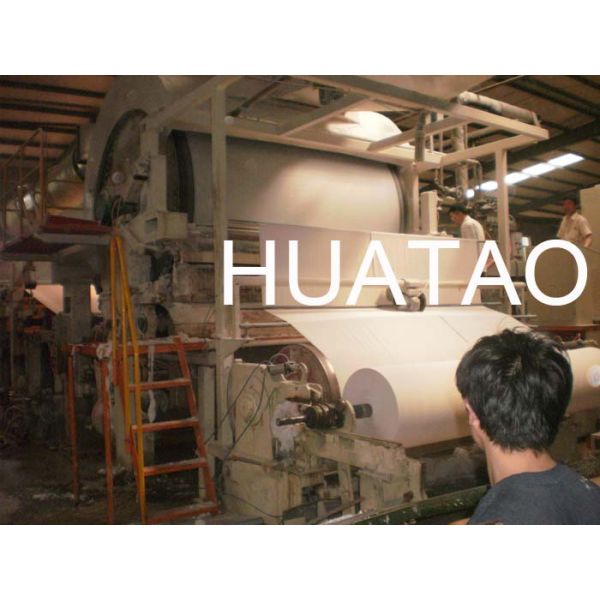

Fully Automatic Toilet Paper Machine 3800mm Type High Speed Paper Napkin Machine Fully Automatic Toilet Paper Machine 3800mm Type High Speed Paper Napkin Machine
